Double Belt Press Laminating Machine for Aluminum Honeycomb Panel
This machine is specifically designed for laminating aluminum honeycomb panels with high efficiency and precision. The double belt press system ensures a strong bond between the aluminum panels and the honeycomb core, resulting in a durable, high-quality end product.
The machine is equipped with advanced temperature control technology (18 heating zones) and pressure distribution, allowing for uniform and smooth lamination. It is suitable for manufacturing various types of aluminum honeycomb panels used in industries such as aerospace, marine, construction, and transportation. The Double Belt Press Laminating Machine from Jiangsu Kuntai Machinery Co., Ltd. offers a reliable and efficient solution for producing top-quality aluminum honeycomb panels.
Product Details
The double belt press laminator is equipped with advanced features to ensure superior performance and consistent results. Its dual-belt system allows for even pressure distribution, ensuring a smooth and even lamination process. This gives the aluminum honeycomb panels a perfect finish and enhanced structural integrity.
One of the main advantages of this machine is its versatility. It can accurately and efficiently laminate various types of materials, including aluminum panels and honeycomb cores. Whether it is building cladding, aerospace applications, or the transportation industry, this machine delivers excellent results in different areas. The height is precisely adjustable. For different thicknesses of honeycomb panels, it can be adjusted well.
The machine’s intuitive controls and user-friendly interface make it easy to operate, reducing the need for extensive training and minimizing the risk of errors. Its automation capabilities simplify the lamination process, increase productivity, and reduce production time. This makes it ideal for manufacturers looking to optimize operations and meet tight production deadlines.
In addition to performance and versatility, dual belt press laminators are designed with durability and reliability in mind. It’s built with high-quality materials and precision engineering to withstand the rigors of continuous use in demanding industrial environments. This ensures long-term performance and minimal downtime, helping to improve overall operational efficiency.
Additionally, the machine is designed with safety features to protect the operator and minimize the risk of accidents. From the emergency stop button to the protective guard, every aspect of the machine has been carefully designed to prioritize user well-being, giving you peace of mind in the workplace.
The modular design of the double belt press provides flexibility in production processes.
Overall, the Aluminum Honeycomb Panel Double Belt Press Laminator is a game changer in the field of panel lamination. Its advanced features, versatility, ease of use, and rugged construction make it a valuable asset for manufacturers looking to improve the quality and efficiency of their production processes. With this machine, getting quality laminated aluminum honeycomb panels has never been easier.
Machine Features
Automatic PLC Control
The machine is easy to operate, and the main parameters can be easily set via the touch screen, reducing the need for labor.
Flexible Heating Zone Layout
18 heating control zones ensure even heat distribution, increasing production efficiency.
Stable Operation
The PTFE-coated fiberglass tape with smooth seams ensures stable and continuous operation of the conveyor belt.
Robust Frame Construction
The durable and stable structure guarantees the machine's long service life and reliable operation.
Precise Gap Adjustment
The gap between the upper and lower working areas can be precisely adjusted from 0 to 150mm using servo motor control.
Components of double belt press
The double belt press laminator typically consists of several key components that work together to facilitate material feeding, laminating, and rewinding. These components may include:
-
Material Feeding Table: Mainly consists of a machine frame, steel feeding rollers, etc. On this feeding table, plate materials are transmitted in order.
-
Flatbed Heating & Pressing Device: Composed of both upper and lower Teflon belts, a belt edge alignment device, heating tubes, a Ø290 mesh belt rubber steel roller, a screw elevator, a servo motor, and more. It is used for material unwinding, as well as for heating, pressing, and laminating two layers of material.
-
Product Output Working Table: The finished products are delivered to the output working table.
Main Machine Parameters (Customizable)
Width (mm) available upon request | 1700 | 1900 | 2100 | 2300 | 2500 | 2700 | 2900 |
Height adjustment | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm |
Heating zone (mm) | 3000, expandable in 1500 mm steps | 3000, expandable in 1500 mm steps | 3000, expandable in 1500 mm steps | 3000, expandable in 1500 mm steps | 3000, expandable in 1500 mm steps | 3000, expandable in 1500 mm steps | 3000, expandable in 1500 mm steps |
Coling zone (mm) | 1500 mm, expandable in 1500 mm steps | 1500 mm, expandable in 1500 mm steps | 1500 mm, expandable in 1500 mm steps | 1500 mm, expandable in 1500 mm steps | 1500 mm, expandable in 1500 mm steps | 1500 mm, expandable in 1500 mm steps | 1500 mm, expandable in 1500 mm steps |
Control Zone (number) | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
Running Speed (m/min) | 0,5-30 | 0,5-30 | 0,5-30 | 0,5-30 | 0,5-30 | 0,5-30 | 0,5-30 |
Products Pictures
Application

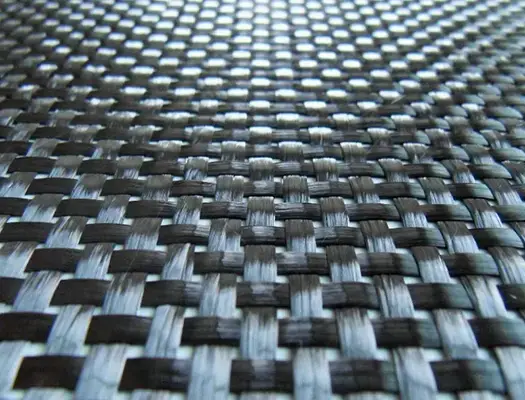

In addition to honeycomb panels, this double belt press can also be used for various other materials, such as continuous fiber-reinforced thermoplastic (CFRT).
