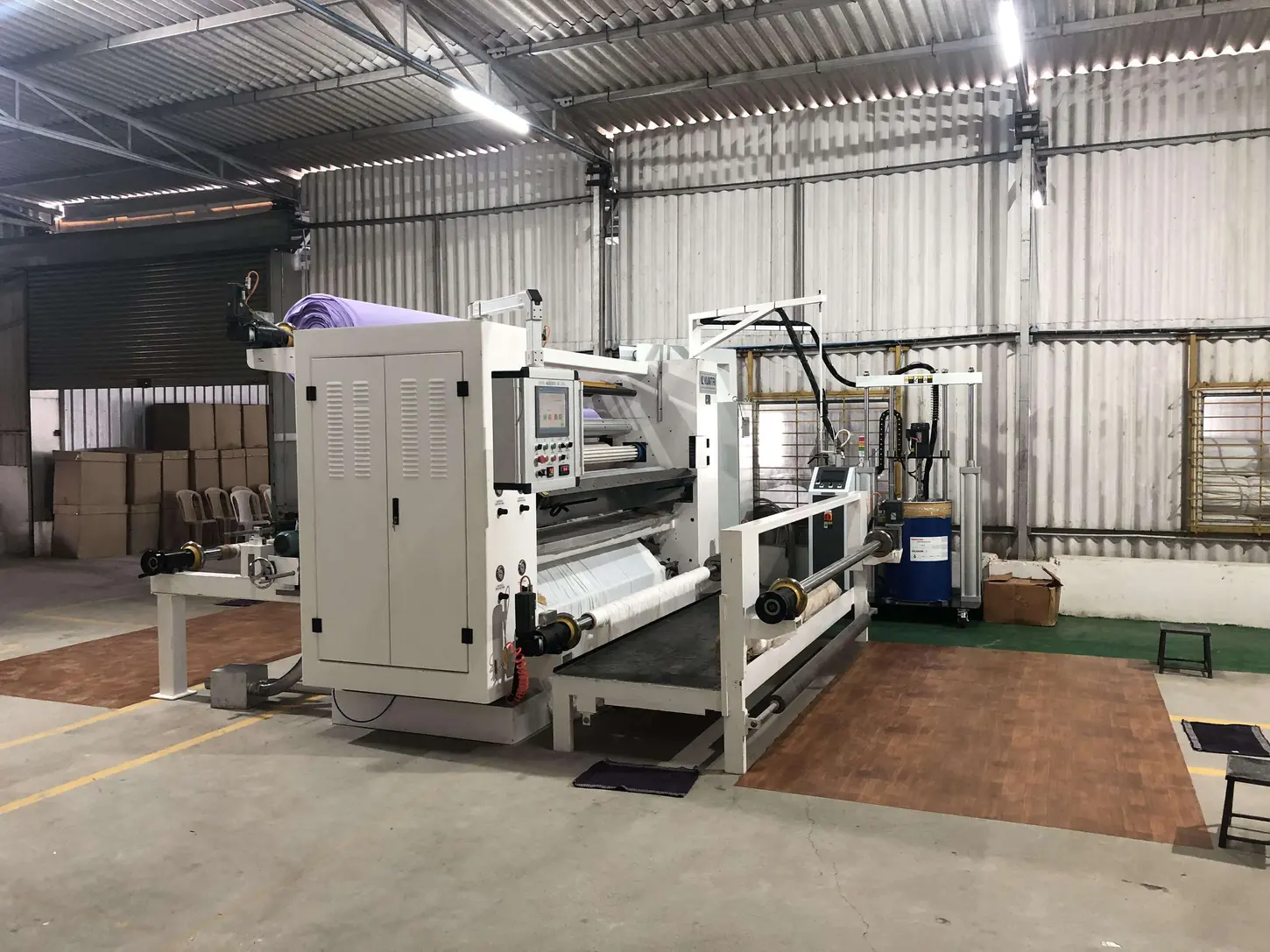

Hot Melt Glue Laminating Machine for Fabric and Film
This equipment utilizes hot melt glue for various laminating applications, including fabric-to-fabric and fabric-to-film, ensuring no odors are released during the entire production process. Its robust wall board frame structure guarantees durability and high precision, making it resistant to deformation.
Fully automated with a PLC control system, it is easy to operate and significantly reduces labor requirements. The specially designed gluing system effectively controls the amount of adhesive applied, ensuring consistent and precise results.
Widely used across industries such as textiles and garments, medical products, bags and luggage, automotive interior decoration, and furniture, this solution provides efficient and reliable laminating capabilities.
Machine Features
Eco-friendly and Odorless Production Process
Adopts PUR hot melt glue for gluing and laminating of fabric, film, and nonwoven materials. It is eco-friendly and odorless throughout the entire production process, making it safe for health.
Robust Machine Structure
The machine structure is a wall board frame type, making it much stronger than regular welded machine bodies. It is resistant to deformation and ensures high precision.
Accurate and Stable Temperature Control
The machine utilizes a built-in thermal oil heating method, providing precise and stable temperature control, which helps save electricity.
Precision Laser Engraving Roller
The machine is equipped with a precision laser engraving roller, ensuring clear and smooth gluing design, which guarantees even glue application.
Wide Working Width Range
The working width range is 1000-3600mm. Special knife coating blades prevent deformation even after heating and prolonged use.
Advanced Control System
It features a Siemens brand PLC control system and Siemens brand servo controllers, resulting in low maintenance costs and reduced running noise.
Automatic Tension Detection System
An automatic tension detection system with digital setting makes the machine simple and reliable. For 4-way stretchable fabrics, a special fabric transmission/edge guiding system can be installed.
Flexible Rewinding Options
The final laminated materials can be rewound into small or large rolls, depending on the specific requirements.
Main Machine Parameters (Customizable)
Modell | KT-PUR-1800 |
|---|---|
Machine Roller Width
| 1800 mm |
Gluing Amount
| 5-80g/m2 |
Machine speed
| 0-60 m/min |
Power
| 45,0 kW |
Electric Current and Voltage
| 380V50HZ3PHASE |
Net Weight
| 9000 kg |
Dimension
| 11800 x 3100 x 3650 mm |
Maximum Material Width
| 1600 mm |
Product Details
manufacturing sectors. Trust our hot melt glue for fabric laminating applications to enhance the efficiency and effectiveness of your production process.
Hot melt adhesives, unlike solvent-based glues, are environmentally friendly and odorless, making them suitable for producing eco-friendly products while ensuring no pollution during the entire lamination process. The laminated materials are well-bonded, and the products are soft, comfortable, breathable, and water-resistant.
Our hot melt laminating machine consists mainly of fabric rewinding and unwinding units, fabric and film transmission systems with a tension controller, film unwinding, a hot melt glue melting unit (optional), a conduction oil heating system (optional), gluing device, laminating device, cooling device, PLC, and electrical control devices. It is compact, highly automated, and easy to maintain.
Suitable materials for lamination include:
-
Fabric + fabric: cotton fabric, jersey, fleece, velvet, terry cloth, suede, etc.
-
Fabric + films: PU film, TPU film, PE film, PVC film, PTFE film, etc.
-
Fabric + leather/artificial leather, etc.
-
Fabric + nonwoven.
-
Nonwoven + film.
-
Fabric + sponge/foam.
